RENT WITH AN OPERATOR
ErgoMover Lift & Go 360°
Wireless material cart rental in Vancouver
Rent the ErgoMover Lift & Go 360° Wireless with a trained operator in Vancouver and the Lower Mainland. This remote-controlled cart moves drywall stacks, steel sections and other building materials, with hydraulic deck lift and 360° deck rotation.

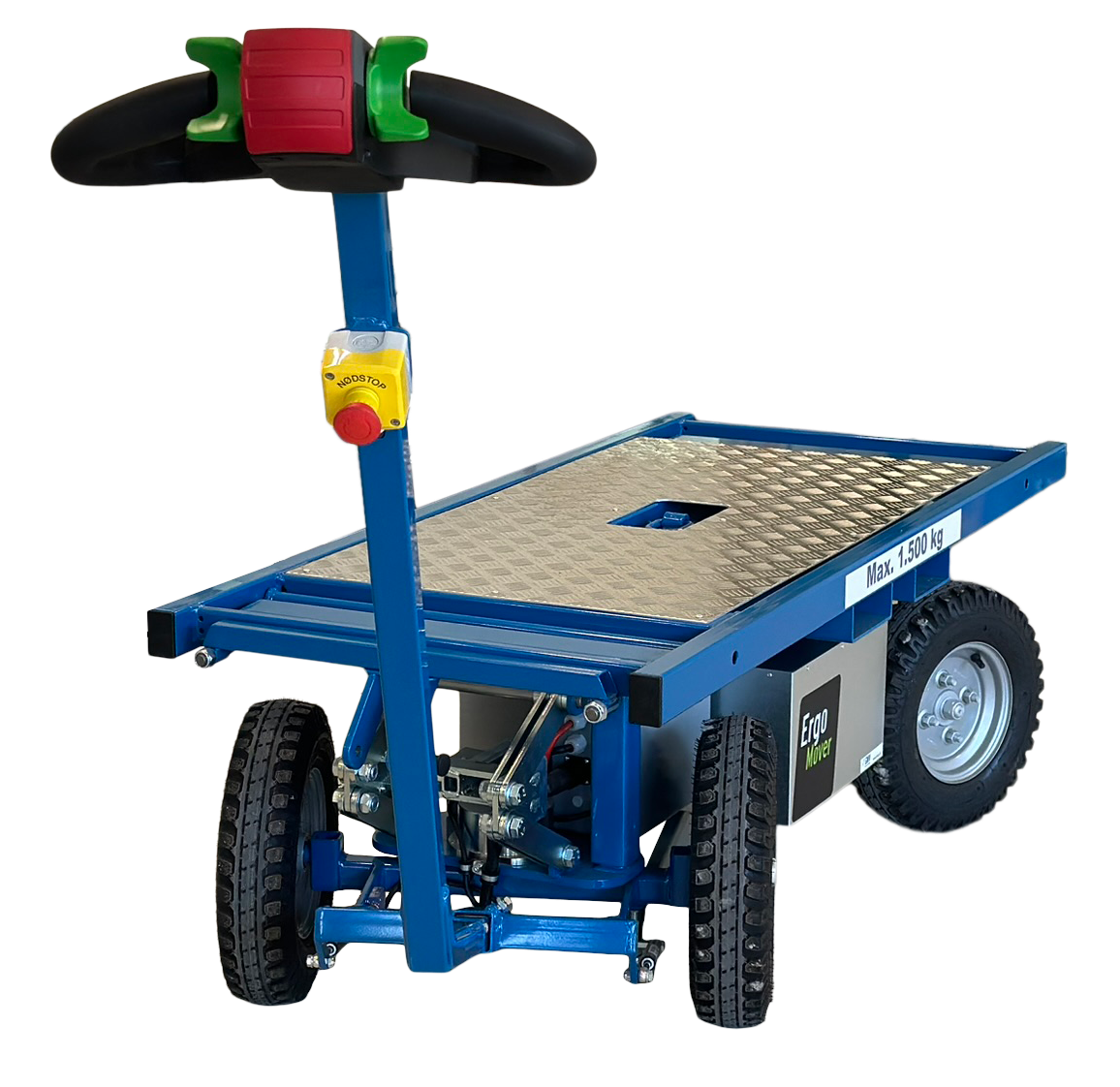

Drawbar model shown
1,500 kg
3,307 lb
Maximum payload
360°
Horizontal
Deck rotation
Wireless
Radio remote
Driving and deck lift
701 mm
27.6 in
Machine width, without load
Carry. Lift. Rotate.
Powered material cart
Four functions on one cart
Drywall delivery, long stock and repeated material runs put different demands on a cart. The Lift & Go combines powered travel with a lifting, rotating deck to handle both the move and the transfer.
Powered travel
The battery-powered cart carries the load under operator control. Four-wheel steering turns the front and rear axles together, which helps when manoeuvring around site obstacles.
Hydraulic deck lift
A 150 mm / 5.9 in stroke raises and lowers the load for transfer onto suitable trestles. The receiving supports and their height are checked for the job.
360° deck rotation
The deck turns horizontally, changing the load’s orientation without repositioning the whole cart. Long loads still need room for their ends to swing.
Wireless control
Radio control operates driving and deck lift, with no drawbar projecting from the cart. The operator can stand where the load and route are in clear view.
ErgoMover range in use
ErgoMover carts at work
A video and photos of ErgoMover carts moving boards, packaged window units and palletized material. Some photos show other models in the range, such as the Manipulator.

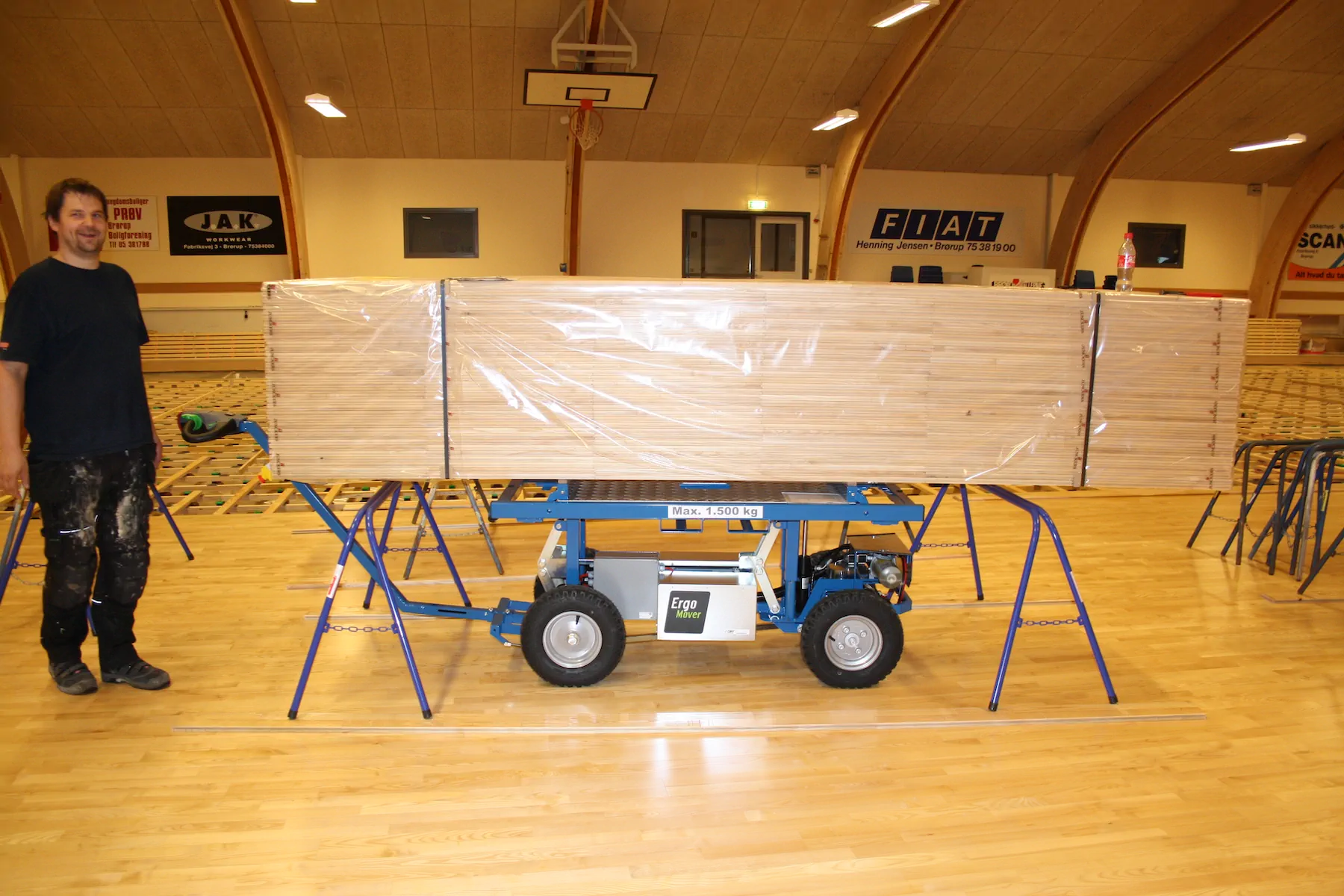

Wrapped board stack carried on trestles

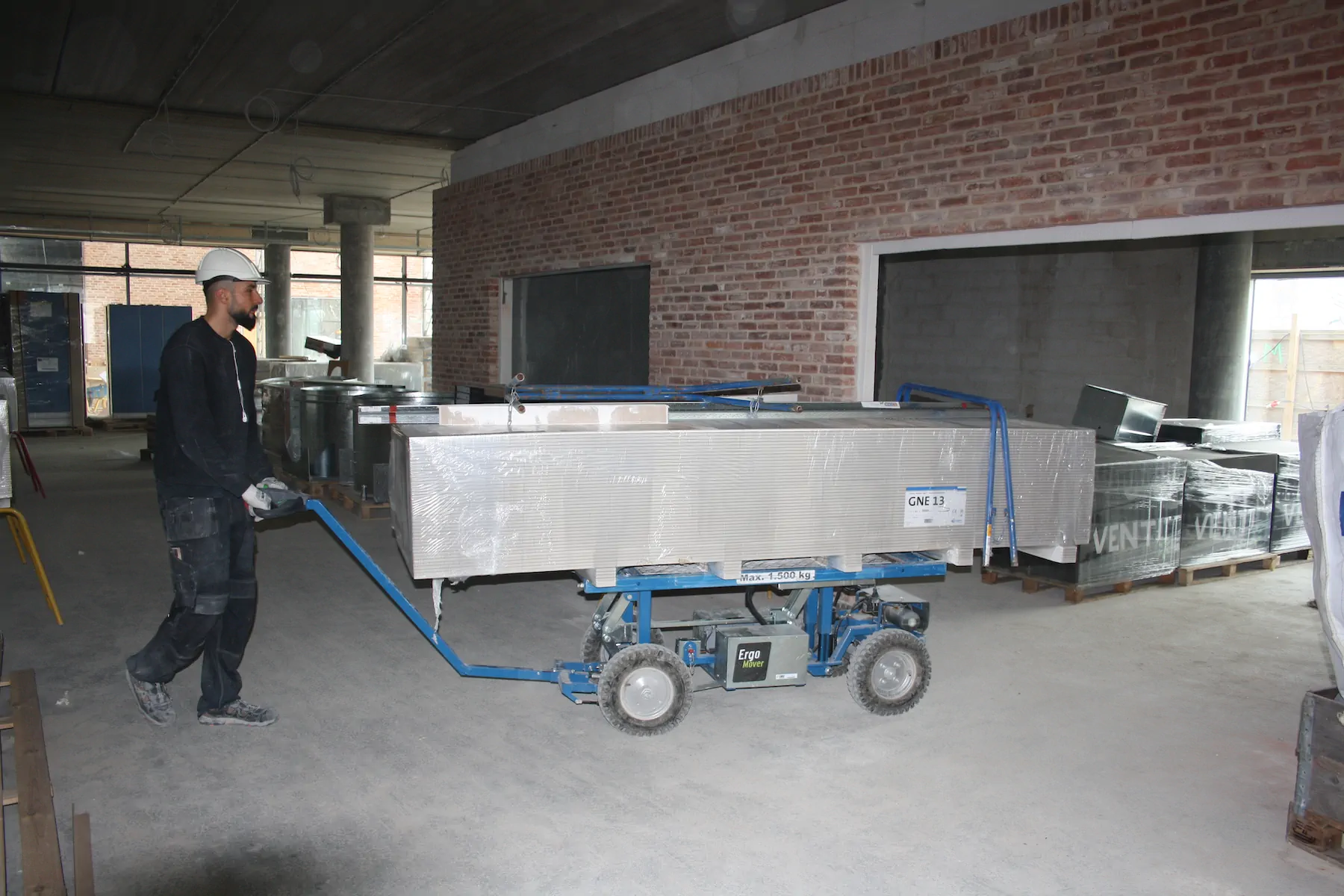

Board stack moved through a building shell

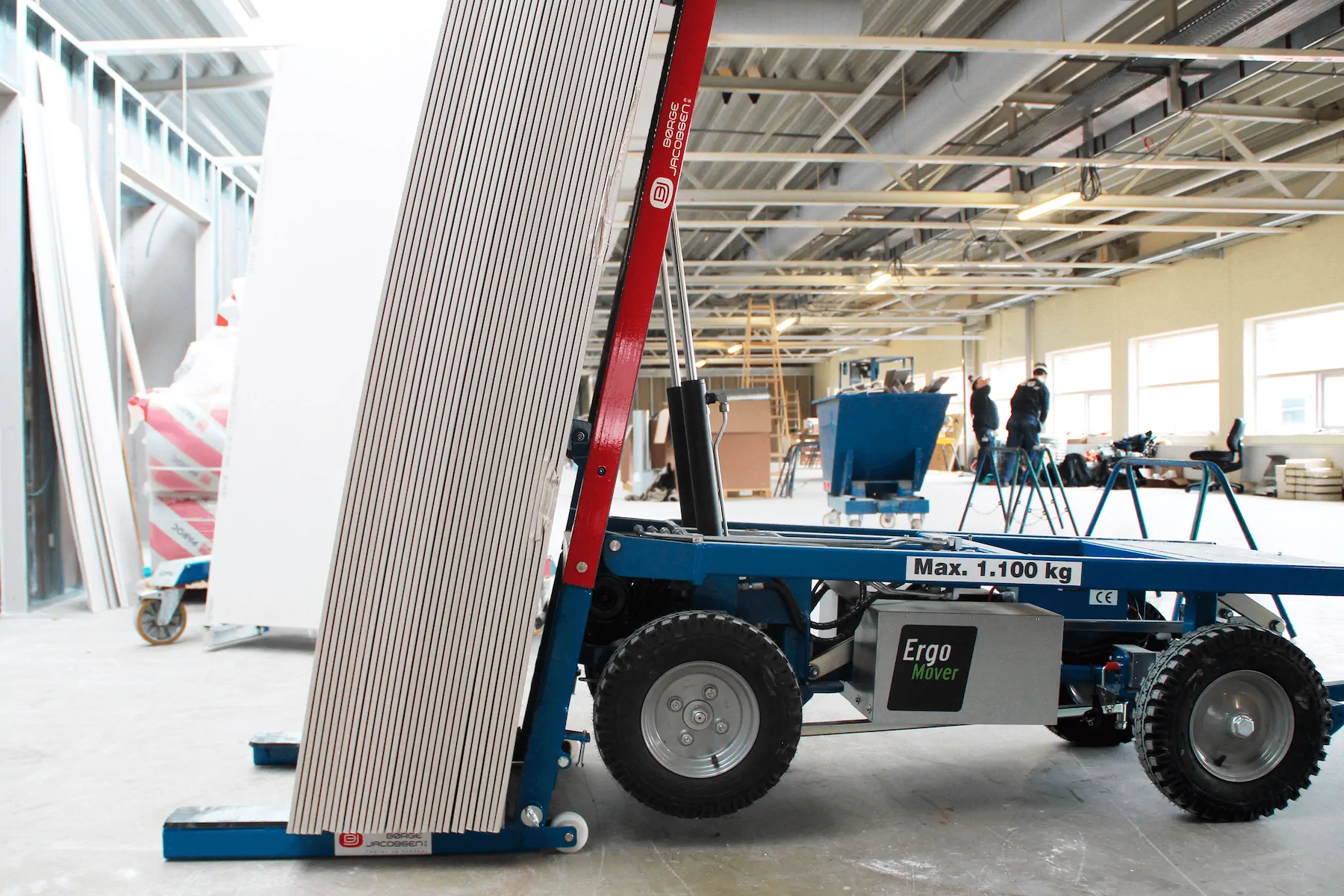

Manipulator model carrying sheets upright

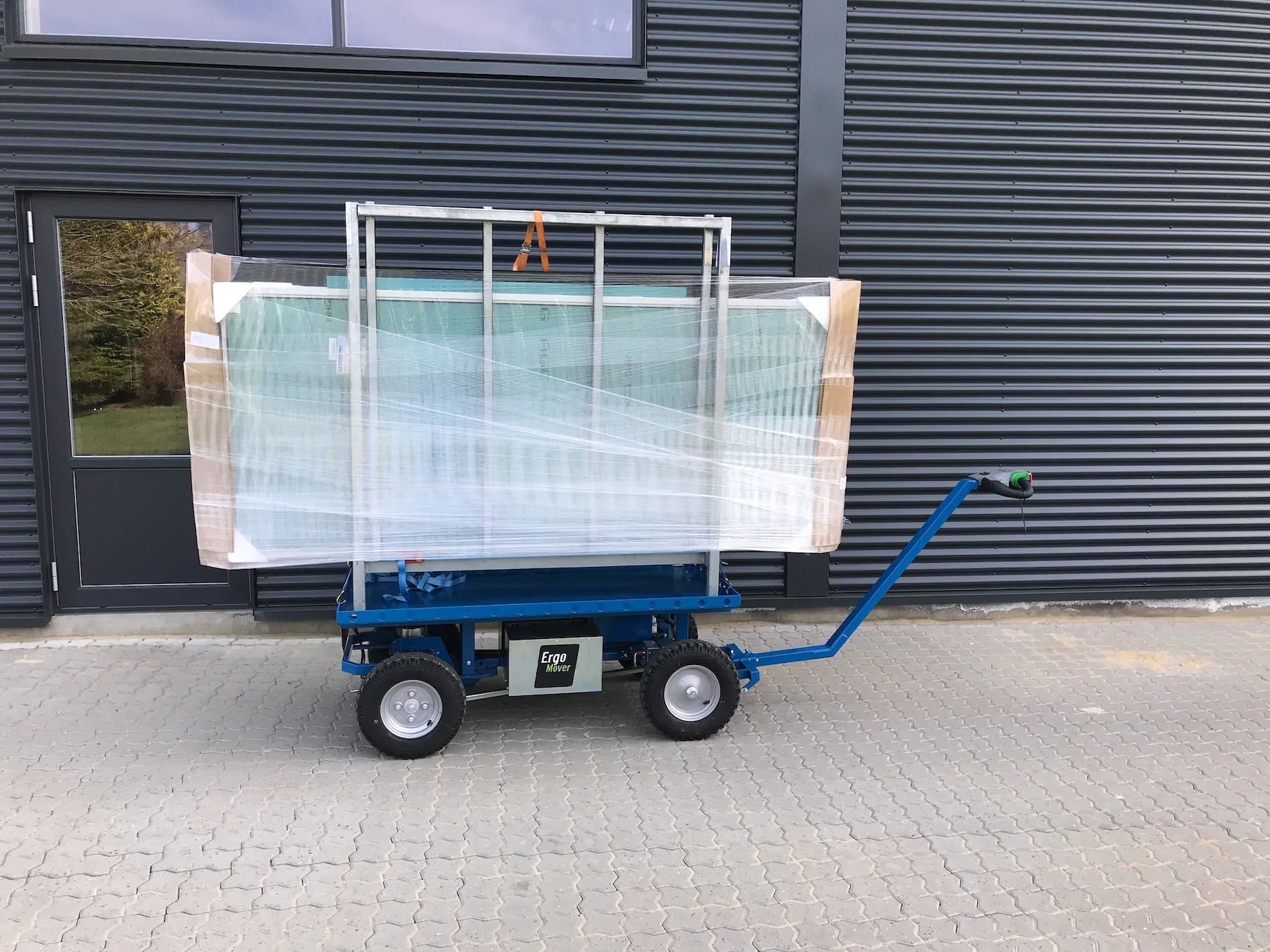

Packaged window units on a drawbar cart

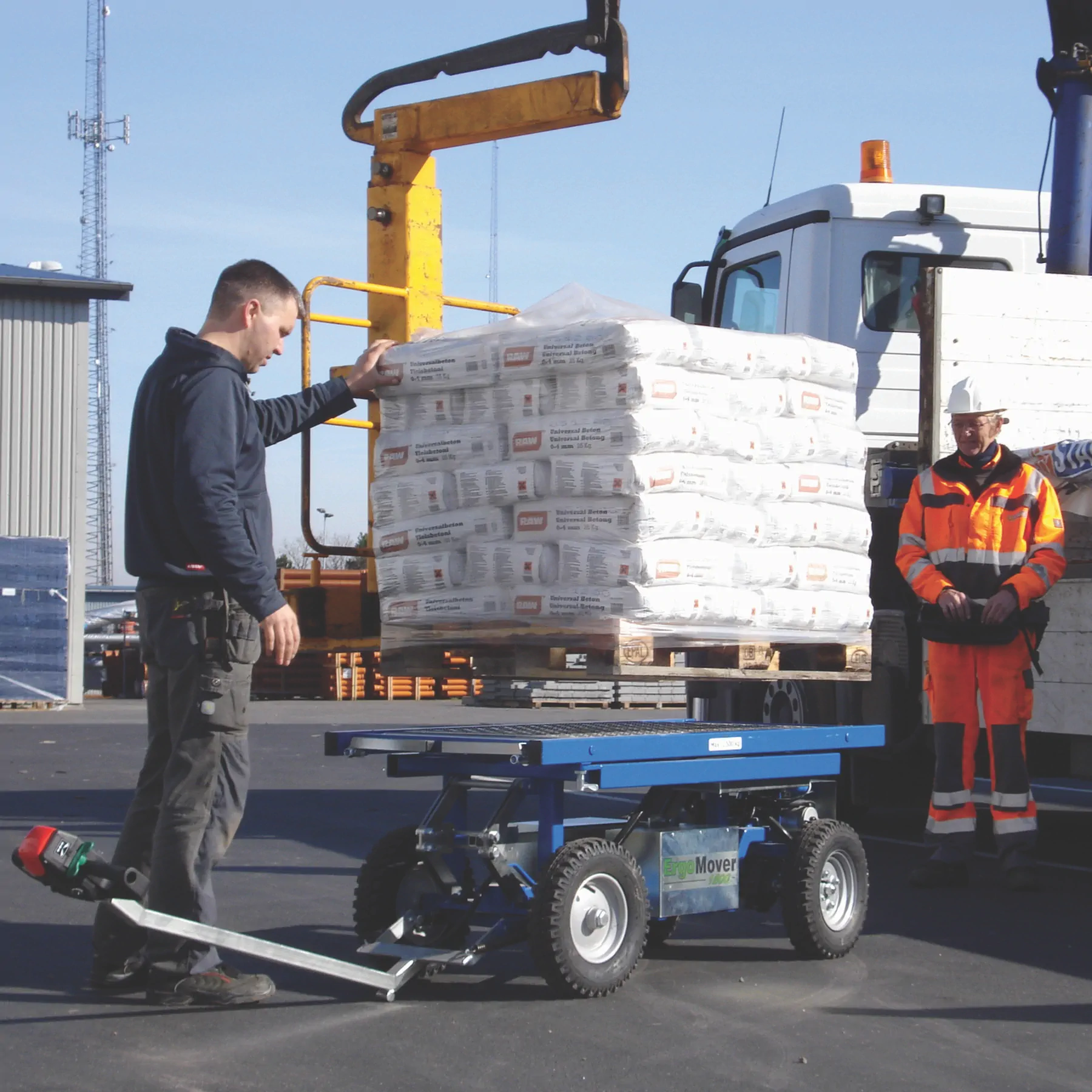

Lift & Go cart beside a pallet of bagged material

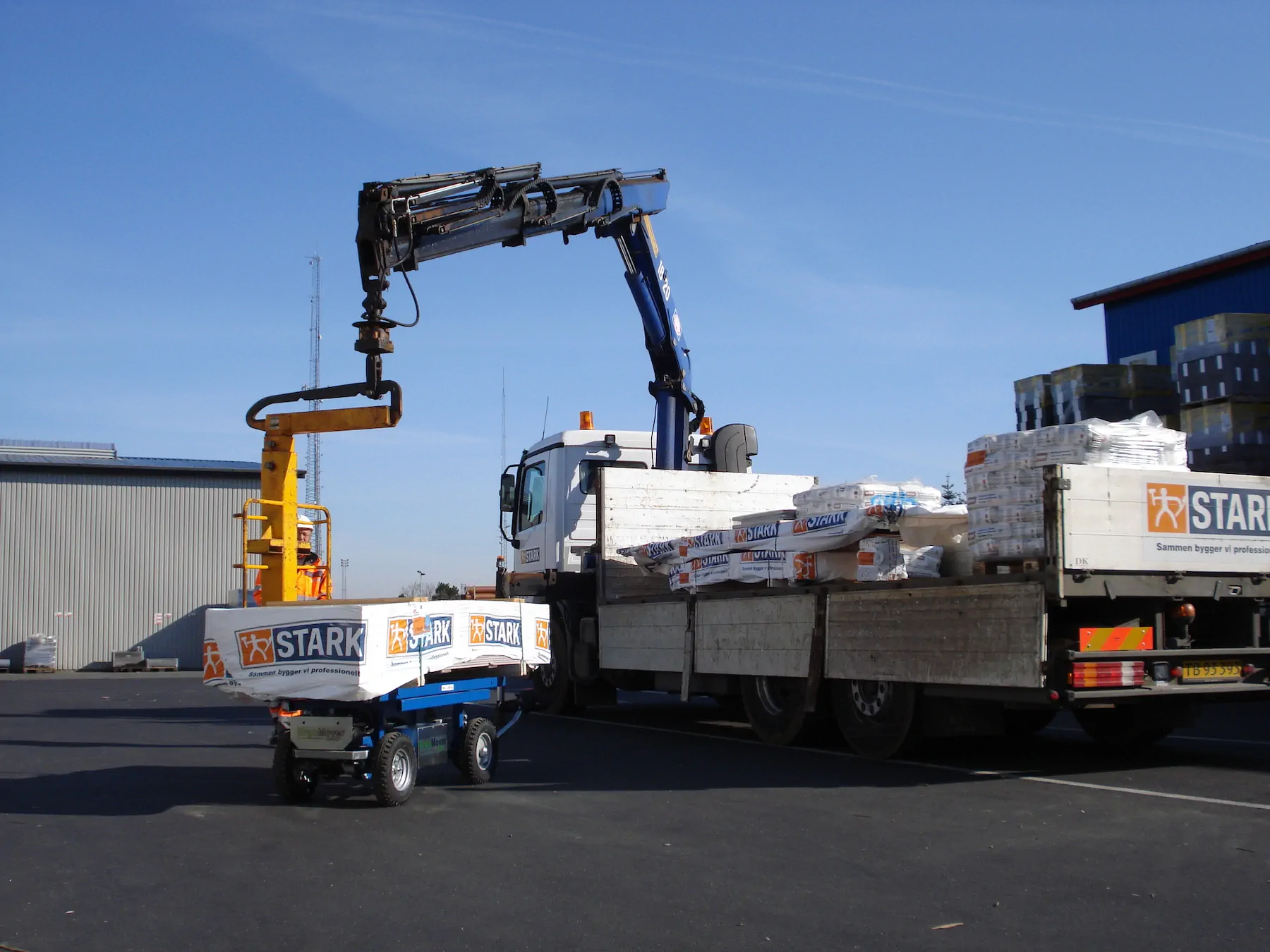

Wrapped pack transferred from a delivery truck
Applications
Drywall, long stock and building materials
Drywall stacks
Supported stacks of drywall and other sheet materials travel from the unloading area to the work zone. The deck lift helps transfer a stack onto suitable trestles.
Steel and long loads
Steel sections, pipes and other long stock ride on the drawbar-free cart. Deck rotation changes their orientation where the route and load length allow.
Tile and stone
Supported loads of floor tile, stone and other building materials can be carried. Their weight, footprint and support arrangement decide how they travel.
Technical data
ErgoMover Lift & Go 360° Wireless specifications
| Maximum payload | 1,500 kg / 3,307 lb |
|---|---|
| Hydraulic deck lift stroke | 150 mm / 5.9 in |
| Horizontal deck rotation | 360° |
| Control | Radio remote control, no drawbar |
| Steering | Four-wheel steering |
| Maximum travel speed | 6 km/h / 3.7 mph |
| Electrical system | 24 V battery power |
| Overall width, without load | 701 mm / 27.6 in |
|---|---|
| Overall length, Wireless model | 1,702 mm / 67.0 in |
| Deck length × width | 1,620 × 698 mm / 63.8 × 27.5 in |
| Machine weight, 360° Wireless | 404 kg / 891 lb |
| Minimum trestle height, 360° model | 700 mm / 27.6 in |
Payload includes everything carried on the deck. Load support, balance and securing are assessed for each job, and the load may be wider and longer than the cart.
Dimension drawings
The drawing shows the standard Lift & Go carts. Its Wireless weight (326 kg) and minimum trestle height (660 mm) apply to the model without the rotating deck, so the table above lists the 360° Wireless values.
Plan the job
Space for the cart, clearance for the load
Route and turning space
Doorways, corners and elevator interiors need clearance for the loaded cart, including the sweep of long materials when turning or rotating the deck. Measure the route at its tightest points.
Ground, floors and transfer points
Firm support is needed along the route and at the unloading position. Floor and elevator limits must account for the machine, the load and the wheel loading, and ramps, thresholds and trestle height are part of the site review.
Vancouver and across Canada
Rent an ErgoMover with an operator
Daily, weekly or monthly
Rent the Lift & Go 360° Wireless by the day, week or month, with a trained operator. Send the material weight and dimensions, site location and dates for a quote, and we review the route, load support and transfer points before confirming the setup.
Buy or lease an ErgoMover
For regular material handling, ask about purchasing or leasing. We can discuss the configuration for your loads and working space.
Vancouver and the Lower Mainland
We serve Vancouver, Burnaby, Richmond, Surrey, Coquitlam, Langley, Delta, North Vancouver, West Vancouver, New Westminster and Abbotsford. Delivery and pickup are arranged with the rental.
British Columbia and Canada
Projects elsewhere in British Columbia and in other provinces can be arranged. Share the site location and rental period so we can confirm availability and transport.
Before you book
Questions about the ErgoMover rental
Which ErgoMover is available to rent?
Our rental is the ErgoMover Lift & Go 360° Wireless: battery-powered, with hydraulic deck lift, horizontal deck rotation and radio remote control. A trained operator is included.
How much can it carry?
Up to 1,500 kg / 3,307 lb, counting any supports or fixtures on the deck. Size, balance and securing also affect what can be moved.
Can it lift a drywall stack onto trestles?
Yes. The deck lifts 150 mm / 5.9 in to transfer a supported stack onto suitable trestles. The 360° model needs trestles at least 700 mm / 27.6 in high, and we check the transfer arrangement for your load.
Will it fit through our doorway or into an elevator?
Unloaded, the cart is 701 mm / 27.6 in wide and 1,702 mm / 67.0 in long. The loaded width, length and height, the turning space and the elevator capacity must also suit the route.
Can it carry long steel sections or pipes?
Yes, with suitable support and securing. With no drawbar and a rotating deck, long loads can be turned where there is room, and their length and balance set the clearance needed.
Can it work indoors or on a construction site?
Yes. It runs on batteries with no exhaust at the machine, so it suits indoor routes as well as site ground, subject to gradients, thresholds and floor protection.
Does the deck tilt a stack upright?
No. The 360° Wireless lifts and rotates its deck. Tilting sheets upright is done by the separate ErgoMover Manipulator, which appears in the photos above.
Do you rent outside Vancouver?
Yes. Rentals cover the Lower Mainland, and projects elsewhere in British Columbia and Canada can be arranged by location, duration and transport requirements.
Can we buy or lease an ErgoMover?
Yes. Pick & Place supplies GMV equipment for purchase and leasing. Tell us your usual loads, transfer heights and working space, and we will discuss the configuration.
Book the ErgoMover
Request an ErgoMover rental quote
Tell us what you need to move, where it needs to go and when. Our team will review the rental for your site.
Pick & Place Lifting Equipment
120-3333 Bridgeway Street
Vancouver, BC V5K 0C7
What to send for your quote
01
Load
Material, total weight, dimensions and how the load is supported or packaged. Metric or imperial is fine.
02
Route
Doorways, turns, elevators, ramps, ground conditions and floor load limits.
03
Transfer and dates
Loading and unloading points, trestle or support height, site address and rental period.
