RENT WITH AN OPERATOR
Winlet 600
Glazing robot rental in Vancouver
Rent the Winlet 600 glazing robot for glass and window installation in Vancouver and the Lower Mainland. This powered glass lifter comes with a trained operator and handles panels up to 600 kg / 1,323 lb. Suitable suction pads also allow it to handle stone and other compatible materials.
600 kg
1,323 lb
Maximum lifting capacity
300 kg
661 lb
At maximum extension
3,300 mm
130 in / 10.8 ft
Maximum height to centre of yoke
890 mm
35.0 in
Base width with single tyres
Less manual handling. More control.
Position
Positioning glass and panels
The Winlet 600 combines powered travel with an extending arm and adjustable vacuum head. Fine lift and side shift allow small corrections when aligning a panel with its frame.
Fine adjustment
A 190 mm / 7.5 in hydraulic fine lift and 90 mm / 3.5 in side shift help align the panel with the opening while the machine supports the load.
Load orientation
The head offers continuous rotation and manual slewing of 90° to either side. The front tilt range is 124° with the arm horizontal.

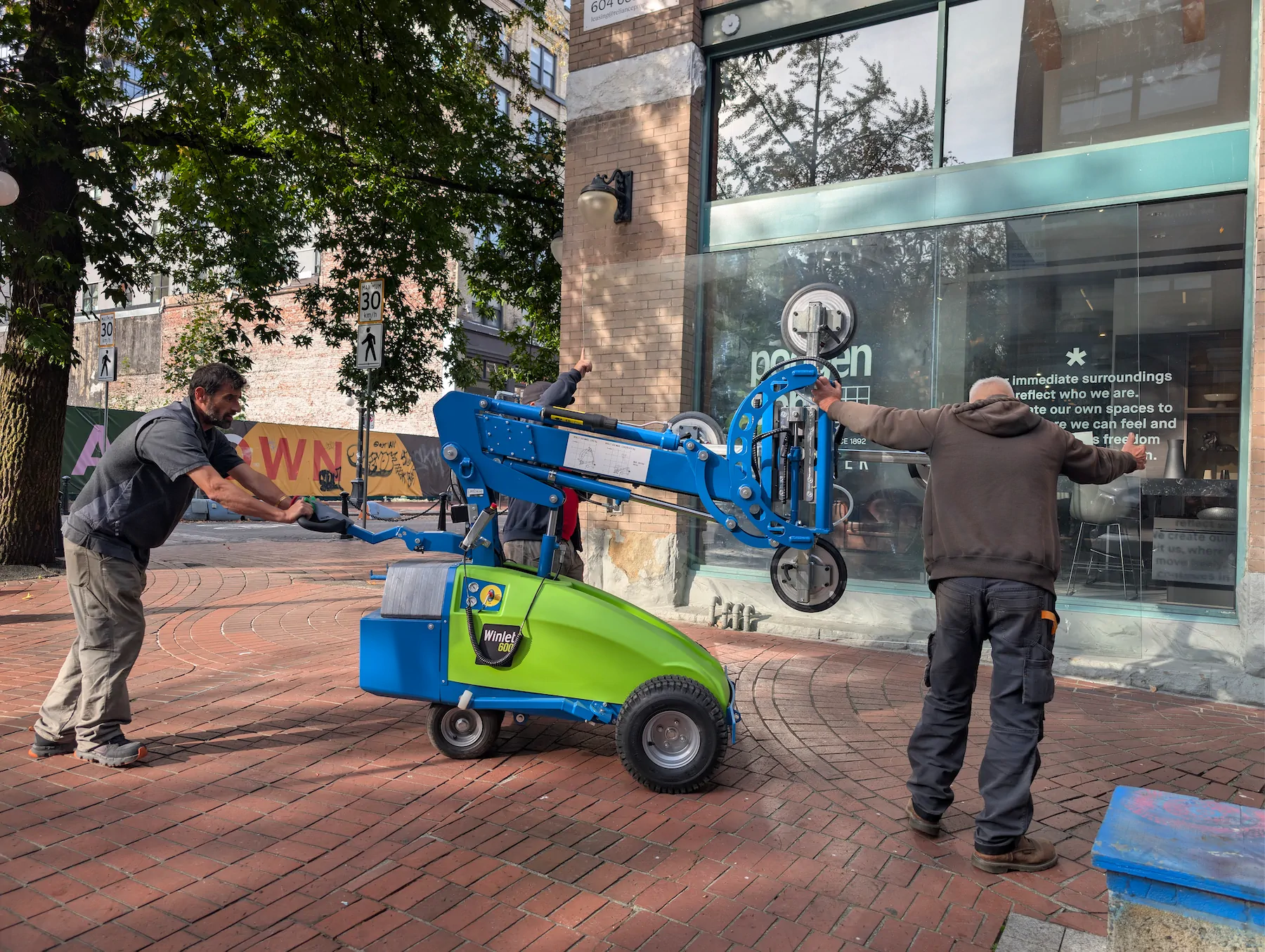

Powered travel
Battery-powered wheel drive moves the machine between the pickup point and the installation area.
Side transport
The head can be turned for side transport of loads up to 300 kg / 661 lb, where the route accommodates the loaded machine.

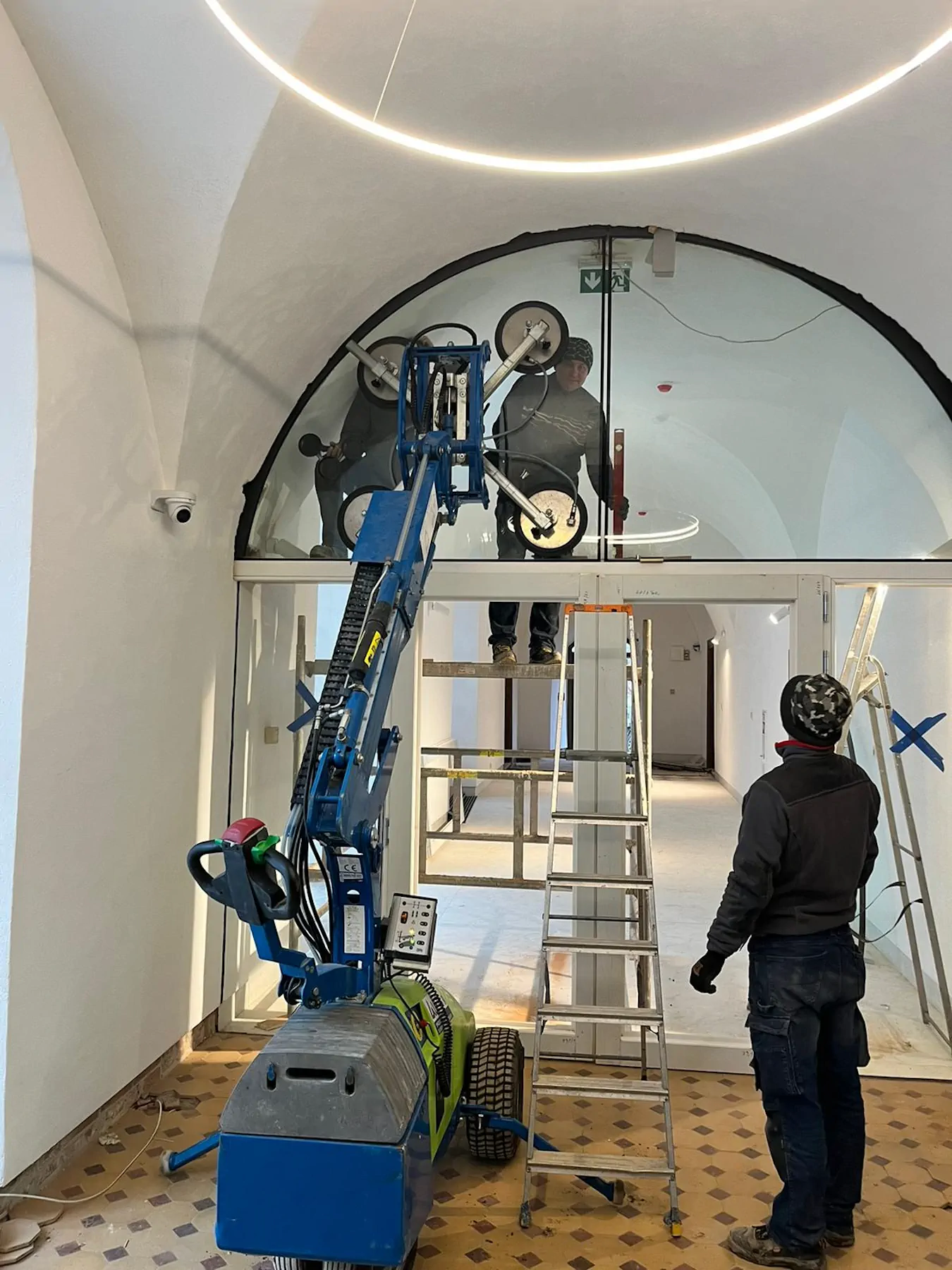

On the job
Winlet 600 in action
See how the Winlet 600 carries, adjusts and positions a load during installation.
Applications
Glass, stone and other compatible materials
The Winlet 600 lifts sheet glass and window units, and suitable suction pads extend it to stone and other rigid panels.

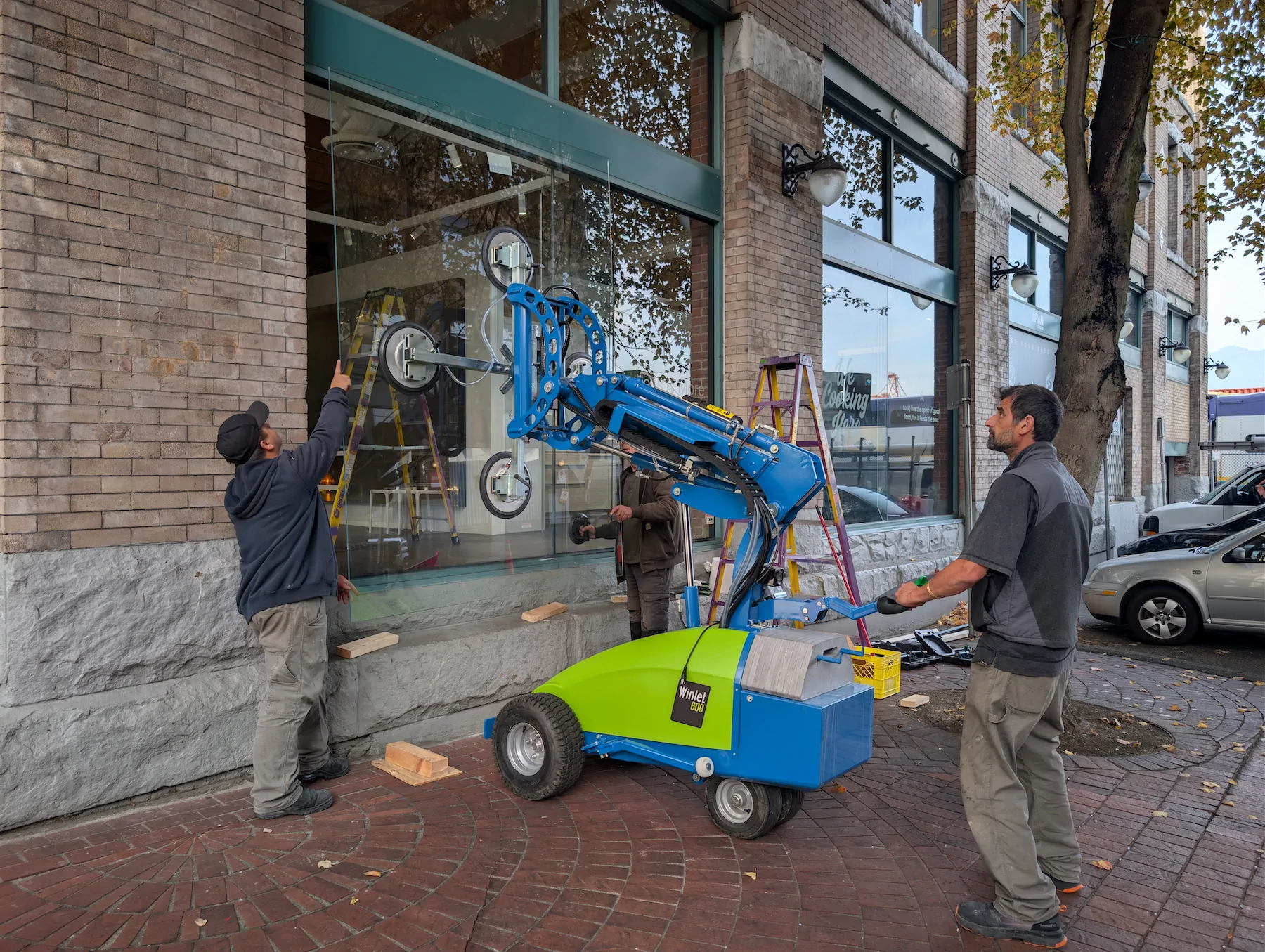

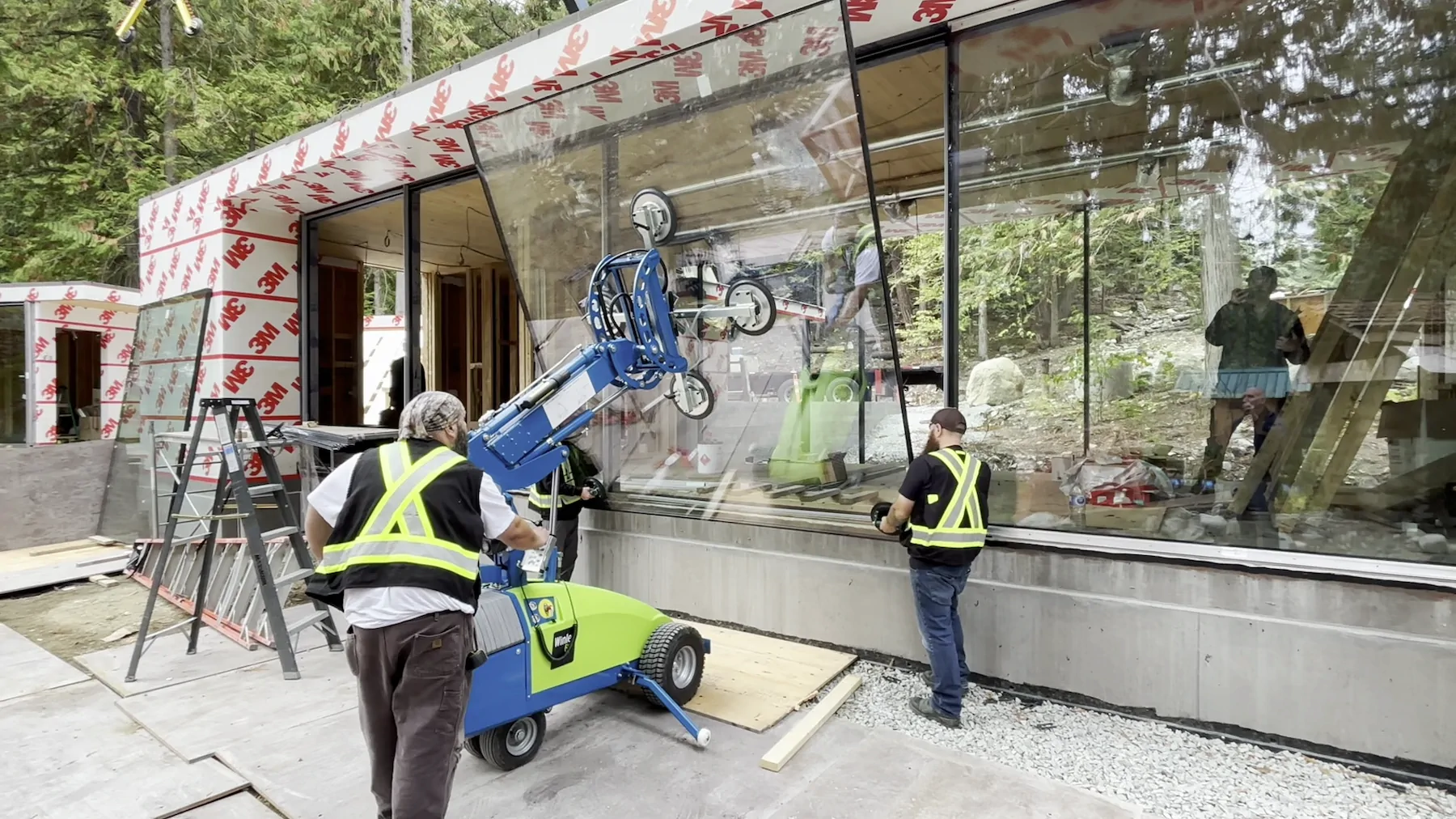

Glass & windows
For sheet glass and window units at the installation opening, with the pad arrangement matched to the panel.

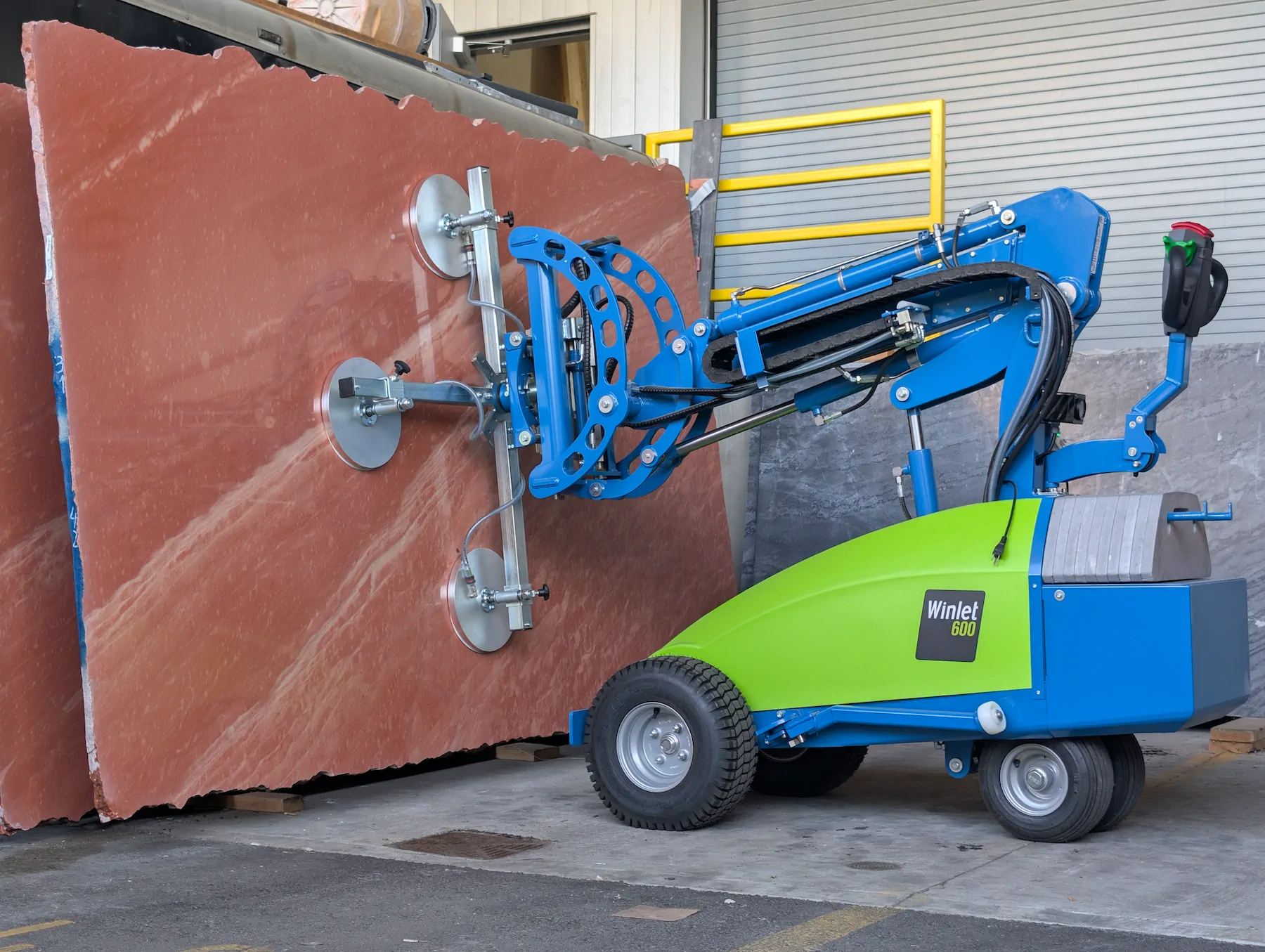

Stone & worktops
Pads matched to the slab’s weight and surface finish let it lift and place worktops and stone cladding.
Other panels
Suitable steel sheet, tiles and other panels can be handled with a pad configuration matched to the surface.

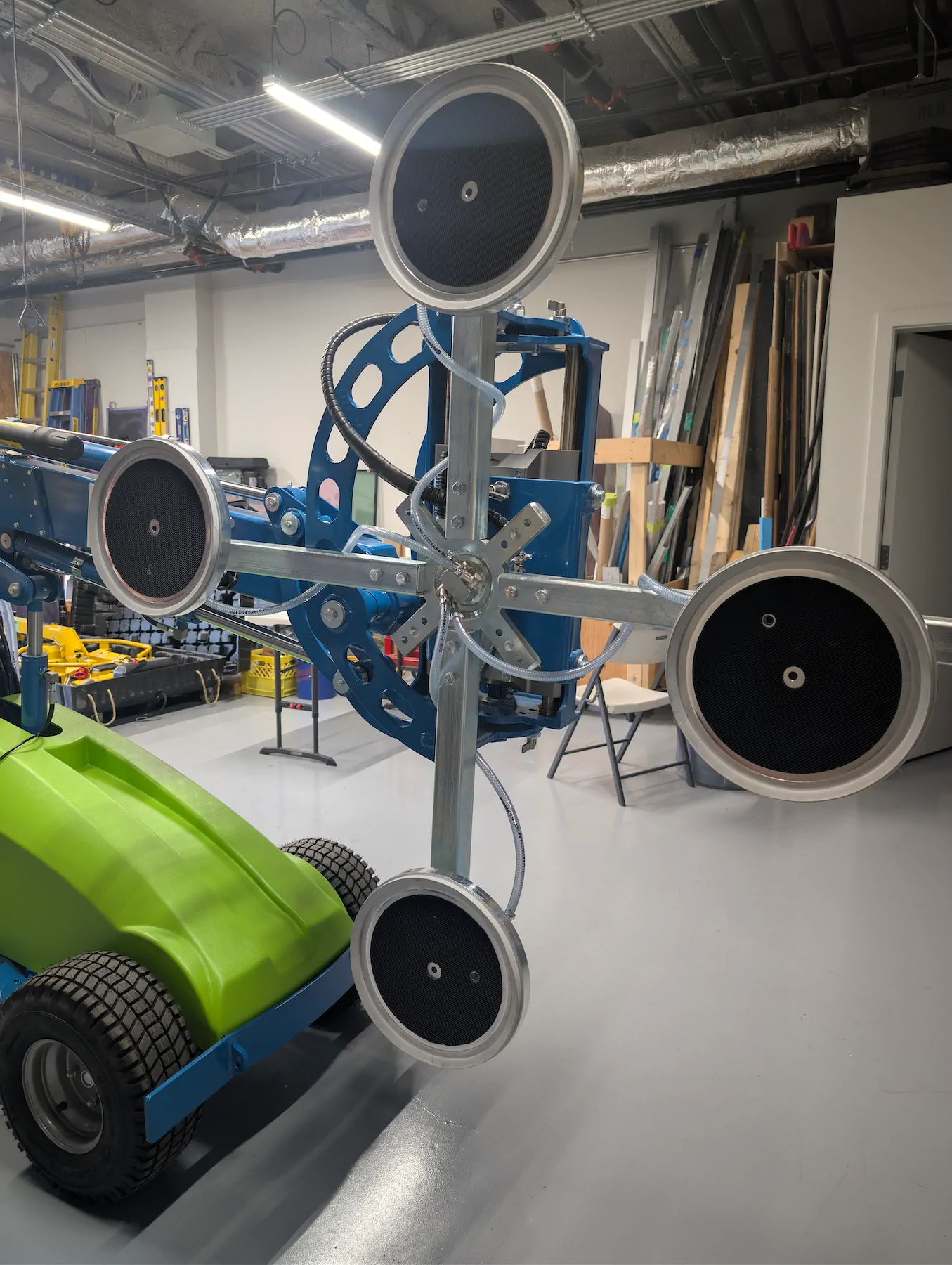

Pads are chosen to suit the surface finish and the load rating of each job.
Technical data
Winlet 600 specifications
| Maximum lifting capacity | 600 kg / 1,323 lb |
|---|---|
| Load at maximum extension | 300 kg / 661 lb |
| Maximum side-mounted load | 300 kg / 661 lb |
| Extension, front bumper to suction cup | 600–1,300 mm / 23.6–51.2 in |
| Maximum lifting height, centre of yoke | 3,300 mm / 130 in (10.8 ft) |
| Side shift | 90 mm / 3.5 in |
| Hydraulic fine lift on arm | 190 mm / 7.5 in |
| Front tilt, arm horizontal | 124° total: 30° back / 94° forward |
| Manual head slewing | 90° to either side |
| Rotation | Continuous |
| External length | 1,580 mm / 62.2 in |
| External width, single tyres | 890 mm / 35.0 in |
| External width, twin tyres | 1,260 mm / 49.6 in |
| Weight, including counterweights | 1,060 kg / 2,337 lb |
| Weight, excluding counterweights | 865 kg / 1,907 lb |
| Standard suction cups | 4 × Ø 360 mm / 14.2 in |
| Batteries | 2 × 95 Ah |
| Travel speed | 0–5 km/h / 0–3.1 mph |
Dimensions and imperial equivalents are approximate. Load capacity depends on reach and the fitted suction pads or accessories.

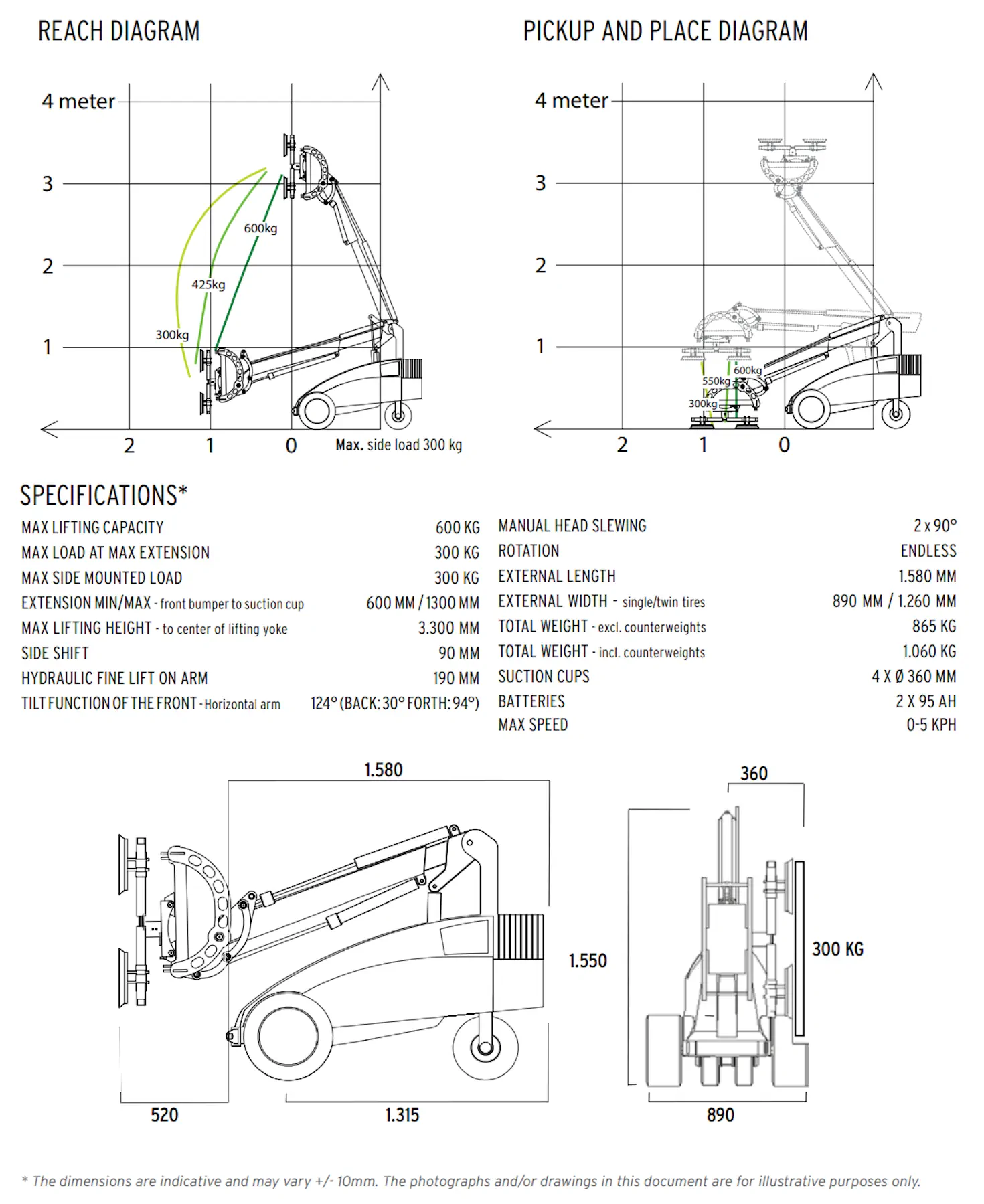

Working range & load diagrams
Lifting height is measured to the centre of the yoke. Extension is measured from the front bumper to the suction cup.
Plan the job
Site access
Route clearance
The Winlet 600 is 890 mm / 35.0 in wide on single tyres and 1,260 mm / 49.6 in on twin tyres. Check the clear width of every doorway and corridor on the route, plus turning space, thresholds and ground conditions.
Machine weight
The machine weighs 1,060 kg / 2,337 lb with counterweights. On suspended floors or in lifts, add the weight of the load and check the floor or lift limit before booking.
Vancouver and across Canada
Rent a Winlet 600 with an operator
Daily, weekly or monthly
Book the machine and a trained operator for as long as the job needs, with suction pads chosen for your panels.
Buy or lease a Winlet 600
Prefer to own one? We can quote the configuration and accessories you need.
Vancouver and the Lower Mainland
Based in Vancouver, Pick & Place provides Winlet 600 rentals for glazing projects in the Lower Mainland, including Burnaby, Richmond, Surrey, Coquitlam and Langley. Availability and delivery are confirmed with each quote.
British Columbia and Canada
The Winlet 600 can also travel to projects elsewhere in British Columbia and in other Canadian provinces, with transport and operator arrangements confirmed in the quote.
Before you book
Questions about the Winlet 600
Can a Winlet 600 lift stone as well as glass?
Yes. With suitable suction pads it handles stone and worktops as well as glass.
Can it lift 600 kg / 1,323 lb at full reach?
No. Capacity drops to 300 kg / 661 lb at maximum extension. The full 600 kg / 1,323 lb applies in the working positions shown in the load diagrams.
Will it fit through a doorway?
Often, yes. The machine is narrow enough for many standard openings, but the loaded route, turns and thresholds decide it, so we check them before booking.
Can it work outdoors?
Yes, it is built for indoor and outdoor work. Ground condition, slope and load position still need to stay within the manufacturer’s limits.
Do you rent the Winlet 600 elsewhere in BC and Canada?
Yes. We rent across British Columbia and in other Canadian provinces.
Is an operator included with the rental?
Yes. Every Pick & Place rental includes a trained operator.
Book the Winlet 600
Request a Winlet 600 rental quote
Planning a lift in Vancouver, the Lower Mainland or elsewhere in Canada? Tell us what you are lifting, where and when, and we will come back with a quote.
Pick & Place Lifting Equipment
120-3333 Bridgeway Street
Vancouver, BC V5K 0C7
What to send for your quote
01
Load
Weight, dimensions, material and surface finish.
02
Access
Clear openings, turns, thresholds, floor or lift limits and site photos.
03
Task
Pickup position, installation height, required reach, location and project dates.
