VANCOUVER RENTAL FLEET
Rental equipment
Glazing robots, vacuum lifters and site cranes
Rent glazing robots, vacuum lifters, counterbalance beams, mini cranes and material carts in Vancouver and the Lower Mainland.
Operator
included
A trained operator on every rental
Daily
weekly or monthly
Rental periods, quoted per project
Vancouver
and across Canada
Delivery planned for each site
Glass
panels and site materials
Each machine page states its rating and basis
Find your machine
Choose by site condition
| Site condition | Machines |
|---|---|
| Narrow route, 890 mm / 35 in or wider | Winlet 600 |
| Uneven ground between the truck and the opening | Winlet 1000 Crawler ER |
| Crane or hoist on site, panes up to 1,200 kg | OKTOPUS GL-M 1200 G |
| Large or heavy flat panels, glass or stone, up to 1,270 kg | Wood’s MR1611LDC |
| Flat glass up to 320 kg in a restricted space | Wood’s P11104DC, Wood’s MRT4LDC |
| Curved glass, radius 1,500 mm or more | Curved glass lifter |
| Glass beneath a balcony, soffit or canopy | Counterbalance beam |
| Stone, worktops or other sealed panels, on suction pads matched to the surface | Winlet 600, Winlet 1000 Crawler ER |
| Building materials other than panels, or lifts over obstacles | Lasius 1.5t, ErgoMover |
Self-propelled
Glazing robots for glass, stone and panels
Self-propelled and battery-powered. They lift and travel on their own, so the lift needs no crane. With suitable suction pads they also place stone, worktops, steel sheet, tiles and other panels.

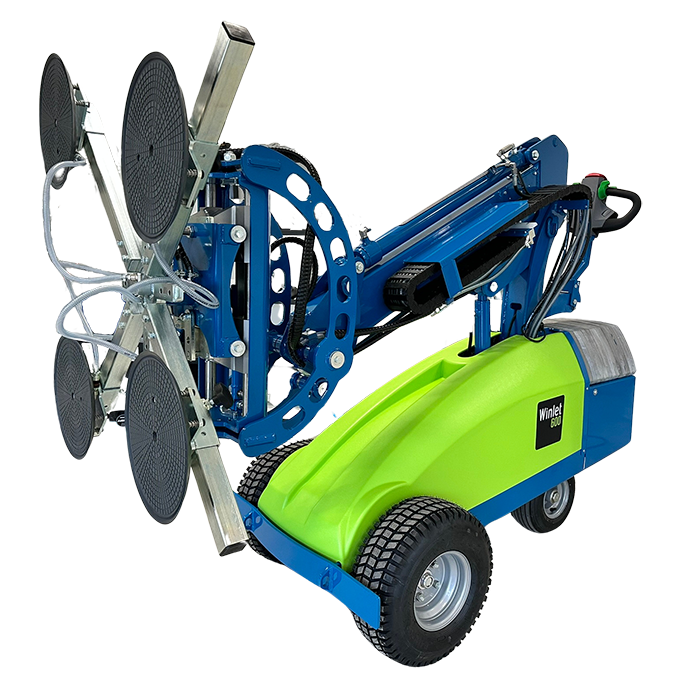

Glazing robot
Winlet 600
Use it for storefront and window glass, stone and worktops when the route is 890 mm wide or more.

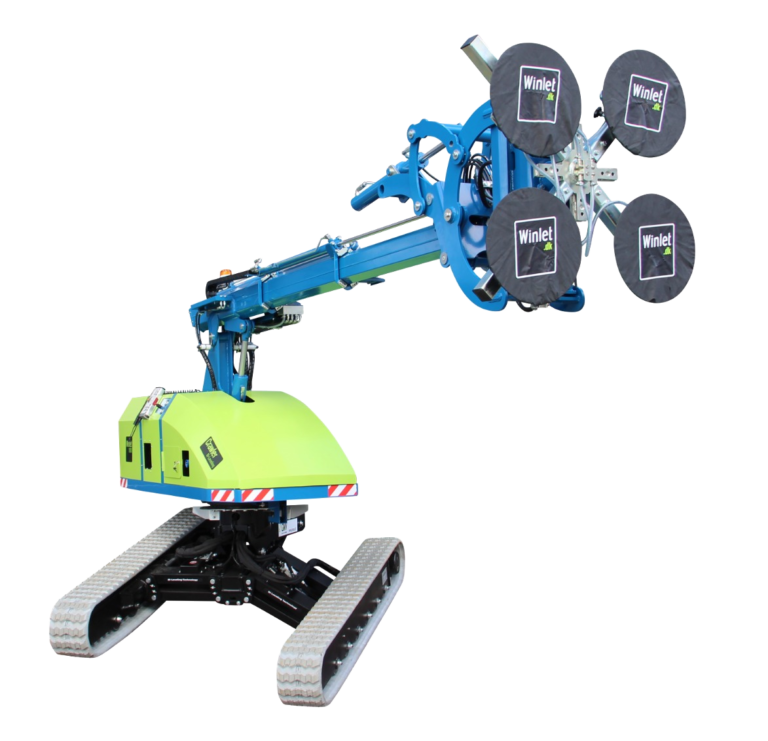

Tracked glazing robot
Winlet 1000 Crawler ER
Use it for glass, window units and sealed stone panels when the route crosses uneven ground. Lifts to 6,050 mm.
Need a different machine?
Send the load, the route and the site conditions. We name the machines that fit.
Crane-hung
Vacuum lifters for cranes and hoists
They hang from a crane or hoist and grip the pane by suction. The frame and the pad count set each rating.

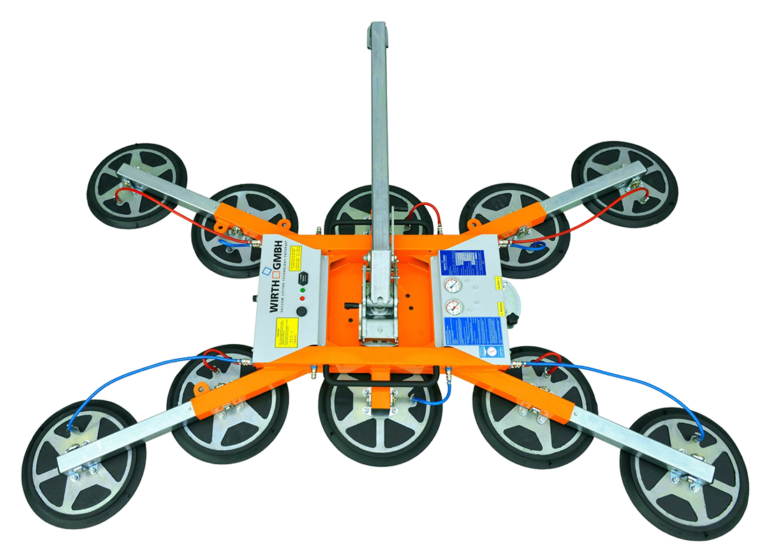

Crane-hung vacuum lifter
OKTOPUS GL-M 1200 G
Use it for large panes under a crane or hoist, with radio control and powered rotation and tilt.
Crane-hung vacuum lifter
Wood’s MR1611LDC
Use it for large glass and flat panels. The frame layout sets the rating, from 4 to 16 pads.

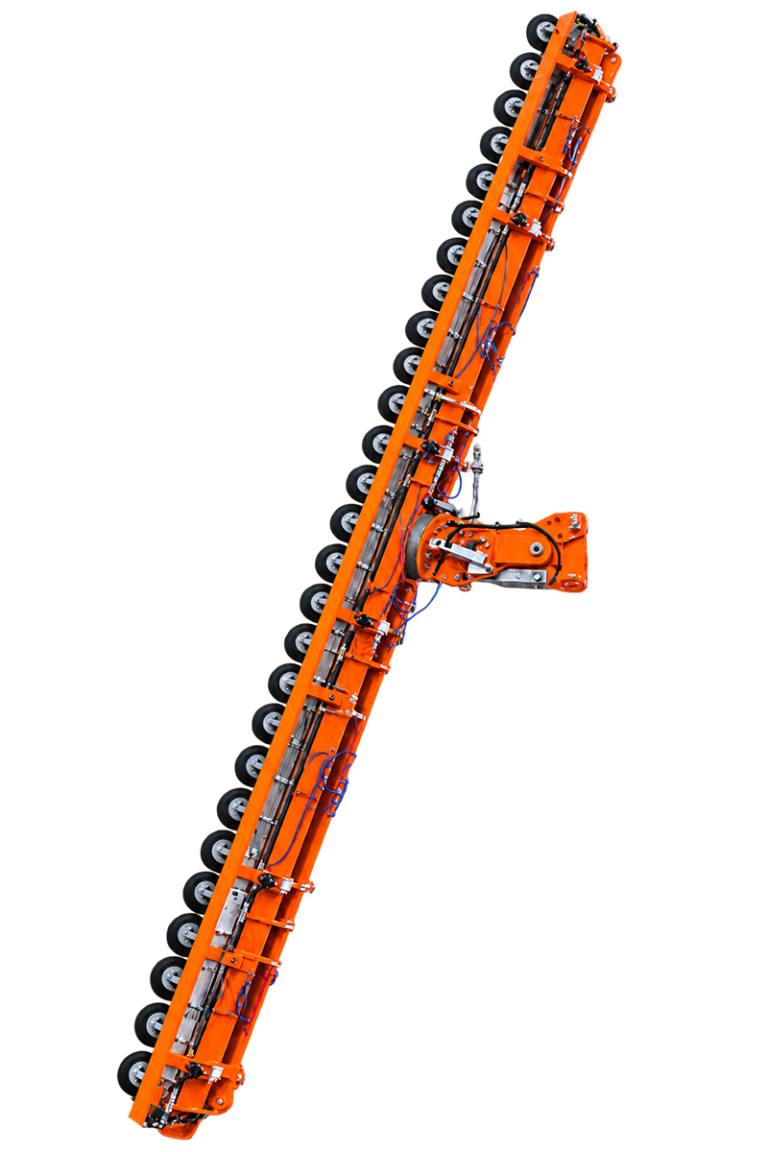

Curved-glass lifter
Curved glass lifter
Use it for concave and convex panes with a radius of 1,500 mm or more.
Compact vacuum lifter
Wood’s MRT4LDC
Use it when the pane needs a different pad layout: basic, extended or linear.

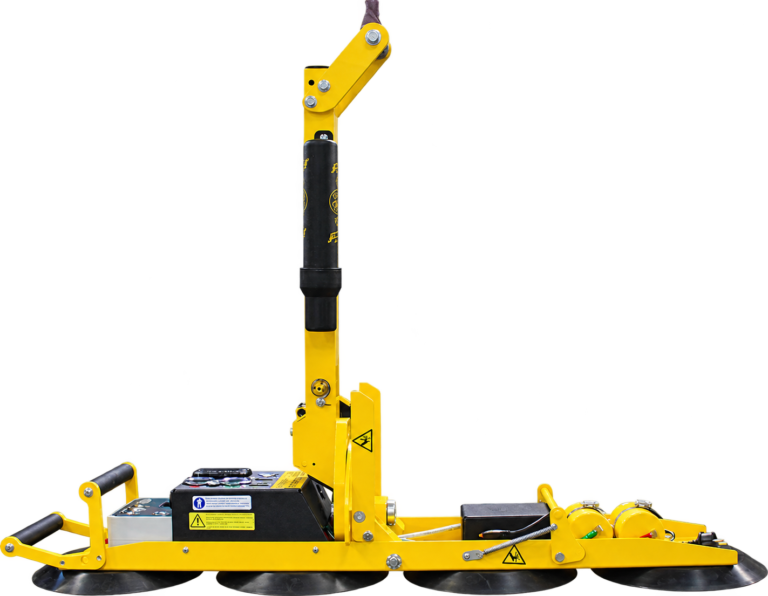

Inline vacuum lifter
Wood’s P11104DC
Use it for flat glass in tight spaces. The four pads sit in one row, and the lifter weighs 41 kg.
Send us the load details
Pane weight, size and the crane on site. We match the lifter and the frame to the pane.
Site equipment
Beams, mini cranes and carts
Equipment for loads that a glass lifter does not cover: under overhangs, over obstacles and along corridors.

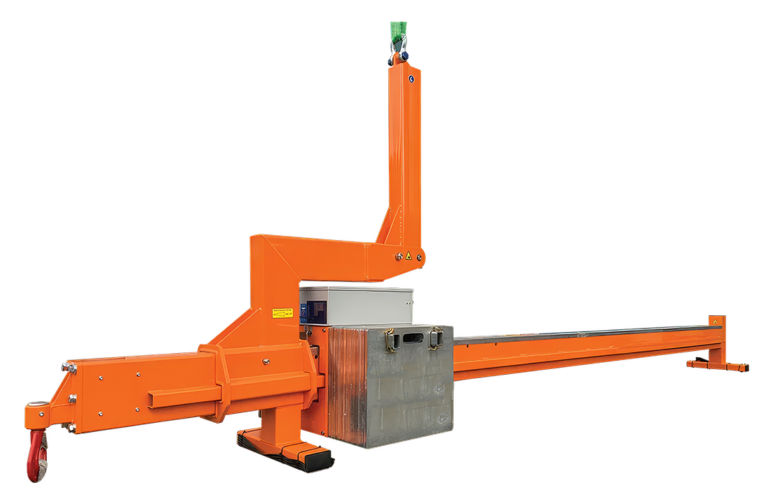

Crane-mounted beam
Counterbalance beam
Use it to place glass beneath a balcony, soffit or canopy that blocks the crane hook line. Takes 1,500 kg with a load hook at up to 2.0 m.

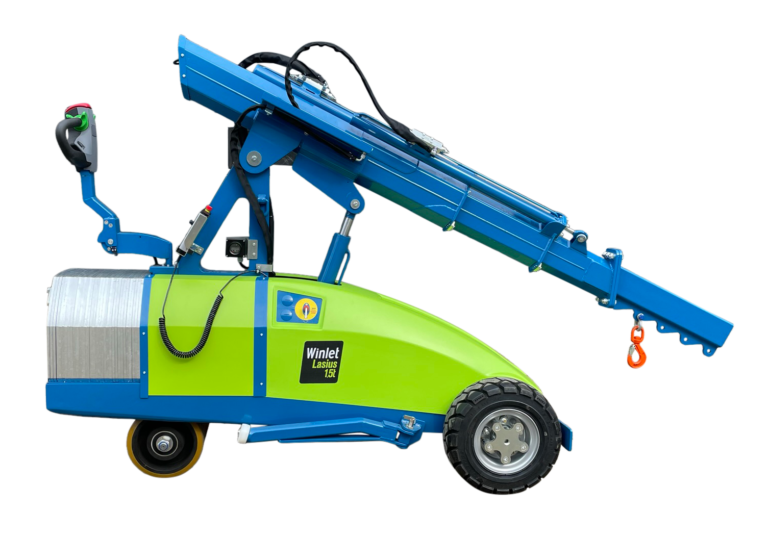

Mini crane with winch
Lasius 1.5t
Use it to lift over obstacles or lower loads below floor level, with winch wire up to 32 m.

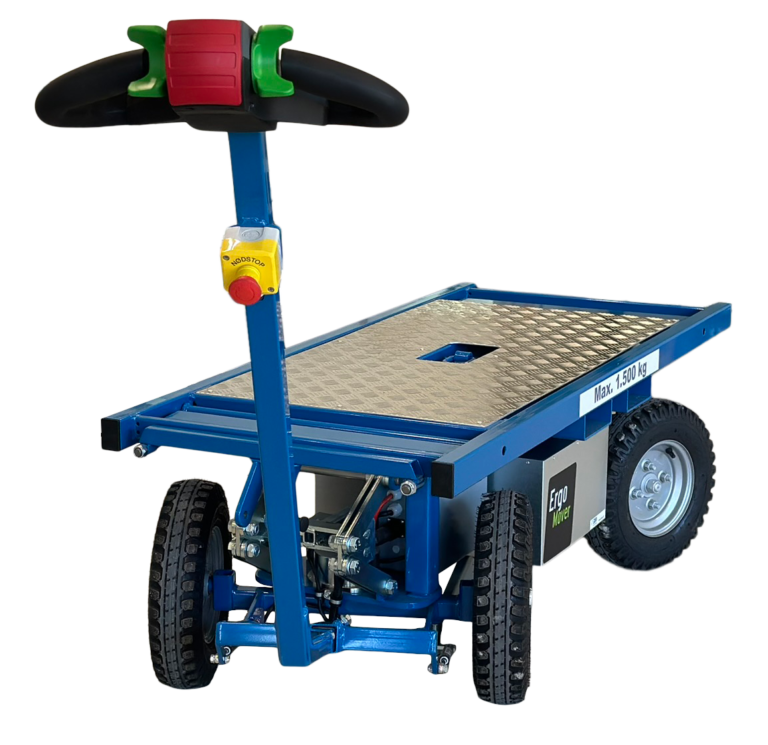

Wireless material cart
ErgoMover
Use it to carry drywall stacks, steel sections and other building materials by radio remote.
Compare
Compare all machines
Swipe sideways to see every column.
| Machine | Rating and basis | How it moves | Crane or hoist needed | Key figure |
|---|---|---|---|---|
| Winlet 600 | 600 kg / 1,323 lbMaximum lifting capacity; 300 kg / 661 lb at full extension | Self-propelled, wheeled | No | 890 mm / 35.0 in base width |
| Winlet 1000 Crawler ER | 1,000 kg / 2,205 lbMaximum lifting capacity | Self-propelled, tracked | No | 6,050 mm / 19.8 ft lifting height |
| OKTOPUS GL-M 1200 G | 1,200 kg / 2,646 lbMaximum WLL with 12 pads | Hung from the hook; powered rotation and tilt | Yes | 360° rotation, 90° tilt |
| Wood’s MR1611LDC | 1,270 kg / 2,800 lbMaximum load with the 16-pad frame | Hung from the hook; manual rotation | Yes | 4–16 pads |
| Curved glass lifter | 800 kg / 1,764 lbCurved-glass working load limit | Hung from the hook | Yes | 1,500 mm / 4 ft 11 in minimum radius |
| Wood’s P11104DC | 320 kg / 700 lbMaximum rated load | Hung from the hook; manual rotation and tilt | Yes | 41 kg / 90 lb lifter weight |
| Wood’s MRT4LDC | 320 kg / 700 lbMaximum rated load | Hung from the hook; manual rotation and tilt | Yes | 62 kg / 135 lb lifter weight |
| Counterbalance beam | 1,200 kg / 2,646 lbGlass lifter at up to 2.10 m overhang; 1,500 kg / 3,307 lb with a load hook at up to 2.0 m | Hung from the hook; powered counterweights | Yes | 3.35 m / 11.0 ft longest overhang |
| Lasius 1.5t | 800 kg / 1,764 lbWinch load, double line; 400 kg / 882 lb on a single line | Pick-and-carry crane, battery-powered | No | 32 m / 105 ft winch wire |
| ErgoMover | 1,500 kg / 3,307 lbMaximum payload | Radio-controlled cart | No | 701 mm / 27.6 in width without load |
Vancouver and across Canada
Rental terms and service area
Daily, weekly or monthly
Machines rent by the day, week or month. We confirm availability and delivery for your dates before the rental starts.
What the quote covers
The quote names the machine, the operator, the rental period and the delivery. We check your load against the machine’s rating first.
Vancouver and the Lower Mainland
We deliver and collect the equipment in Vancouver, Burnaby, Richmond, Surrey, Coquitlam, Langley, Delta, North Vancouver, West Vancouver, New Westminster and Abbotsford. The rental is planned around your installation dates and site access.
British Columbia and Canada
Projects elsewhere in British Columbia and in other provinces can be arranged with advance transport and operator planning. Availability and mobilisation are confirmed for the project.
Before you book
Questions about choosing rental equipment
Glazing robot or crane-hung lifter?
A robot travels and lifts on its own, which suits sites without a crane. A crane-hung lifter grips and rotates the pane, and the crane supplies the lift and the travel.
Which rating do I need?
Compare the pane’s weight with the machine’s rating, and check the basis in the comparison table. A lifter’s rating depends on its frame, its pad count or its overhang.
Can I rent a lifter without a crane?
A crane-hung lifter needs a crane or hoist at the site, and the quote confirms its supply separately. The Winlet robots, the Lasius and the ErgoMover lift without a separate crane.
Can a glazing robot lift stone or worktops?
Yes, when the surface suits suction. The Winlet 600 and the Winlet 1000 Crawler ER take pad options for stone, worktops and other sealed panels, and the Winlet 600 also handles steel sheet and tiles. Send the material, its finish and its weight so we can specify the pads.
Is an operator included?
Yes. Every rental comes with a trained operator.
Book the equipment
Request an equipment rental quote
Send the load and the site details. Our team will confirm the machine and the availability for your project.
Pick & Place Lifting Equipment
120-3333 Bridgeway Street
Vancouver, BC V5K 0C7
What to send for your quote
01
Load
Weight in kg or lb and dimensions in mm or in. For glass, add the thickness and whether it is flat or curved.
02
Route and access
Access widths, ground conditions, floors or lifts on the route, and the crane or hoist on site if there is one.
03
Site and dates
Site address, required dates and rental period, and any delivery restrictions.
